Product Overview

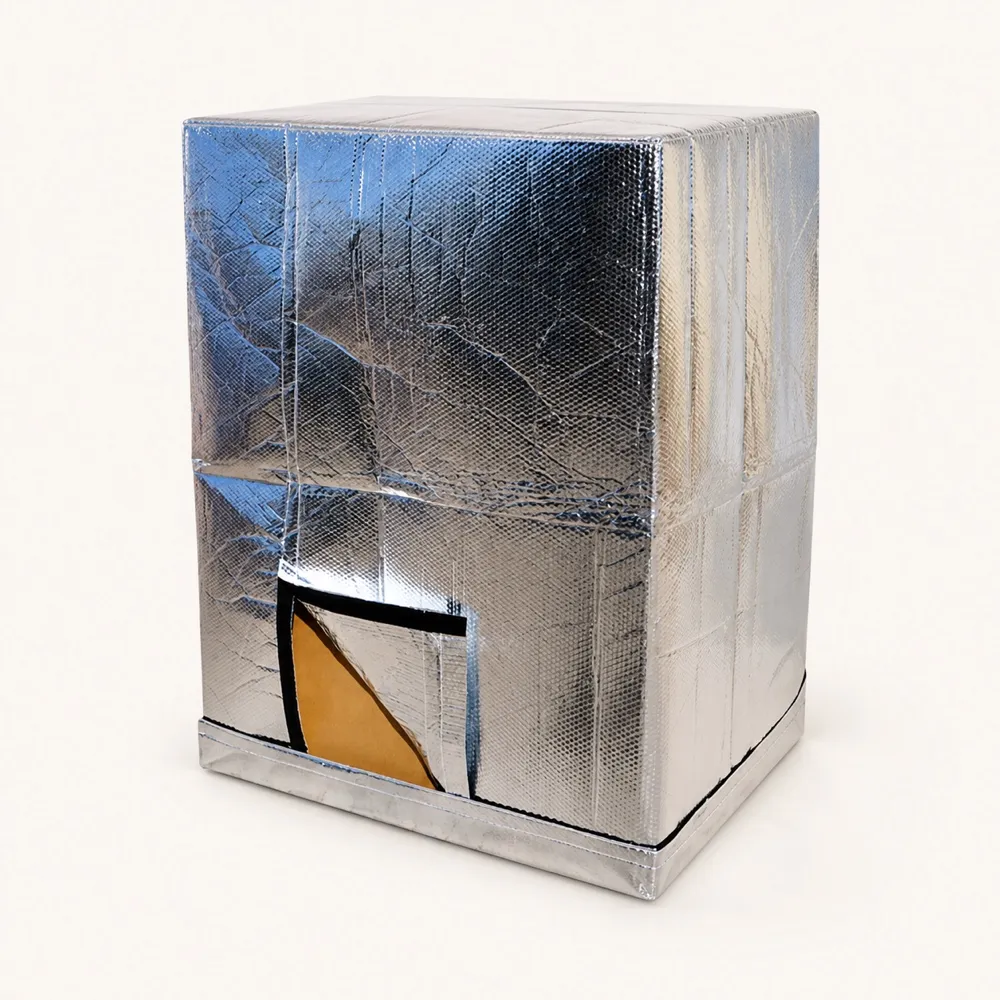

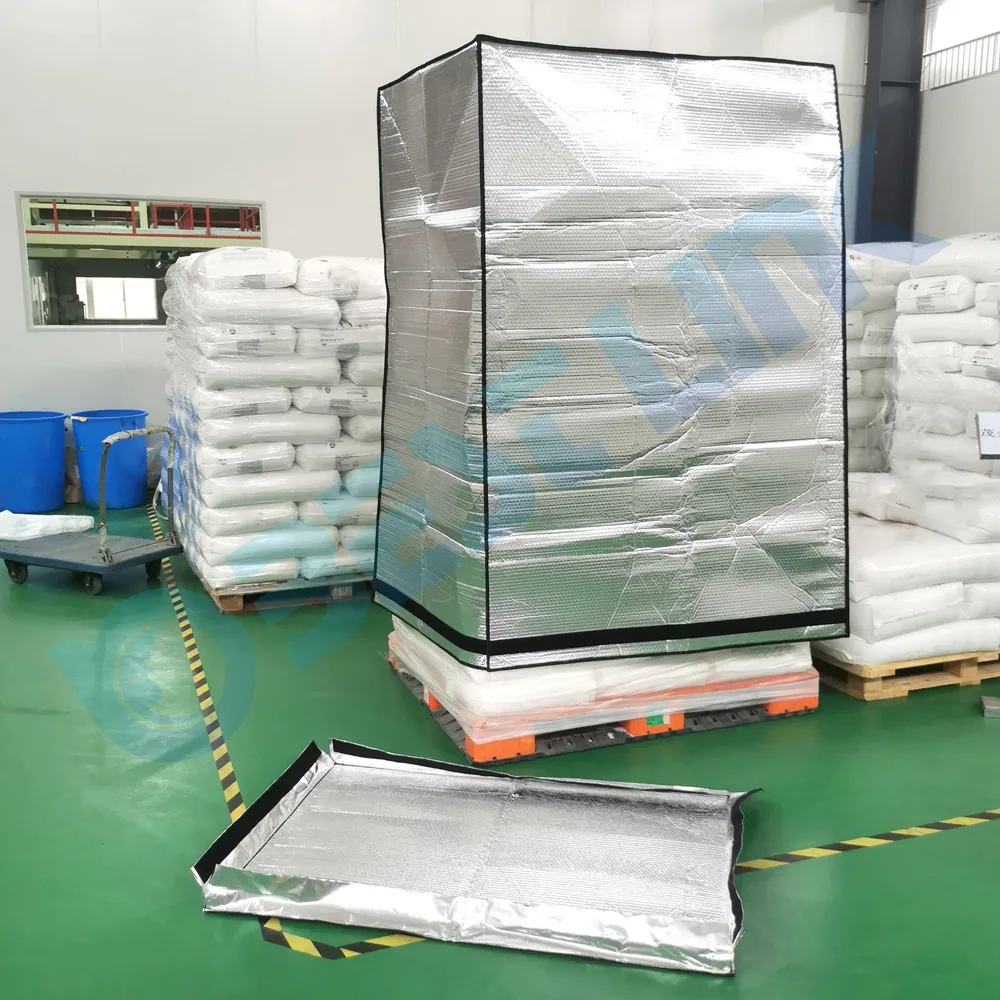

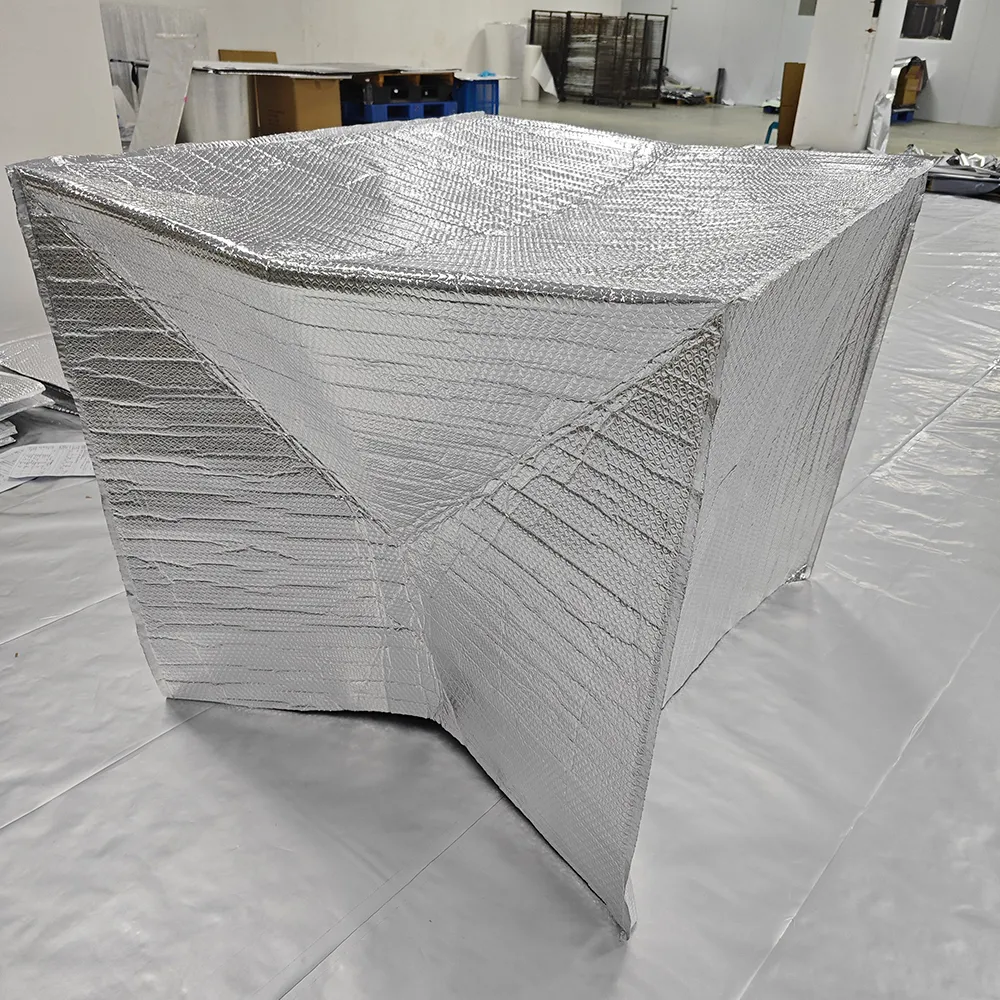

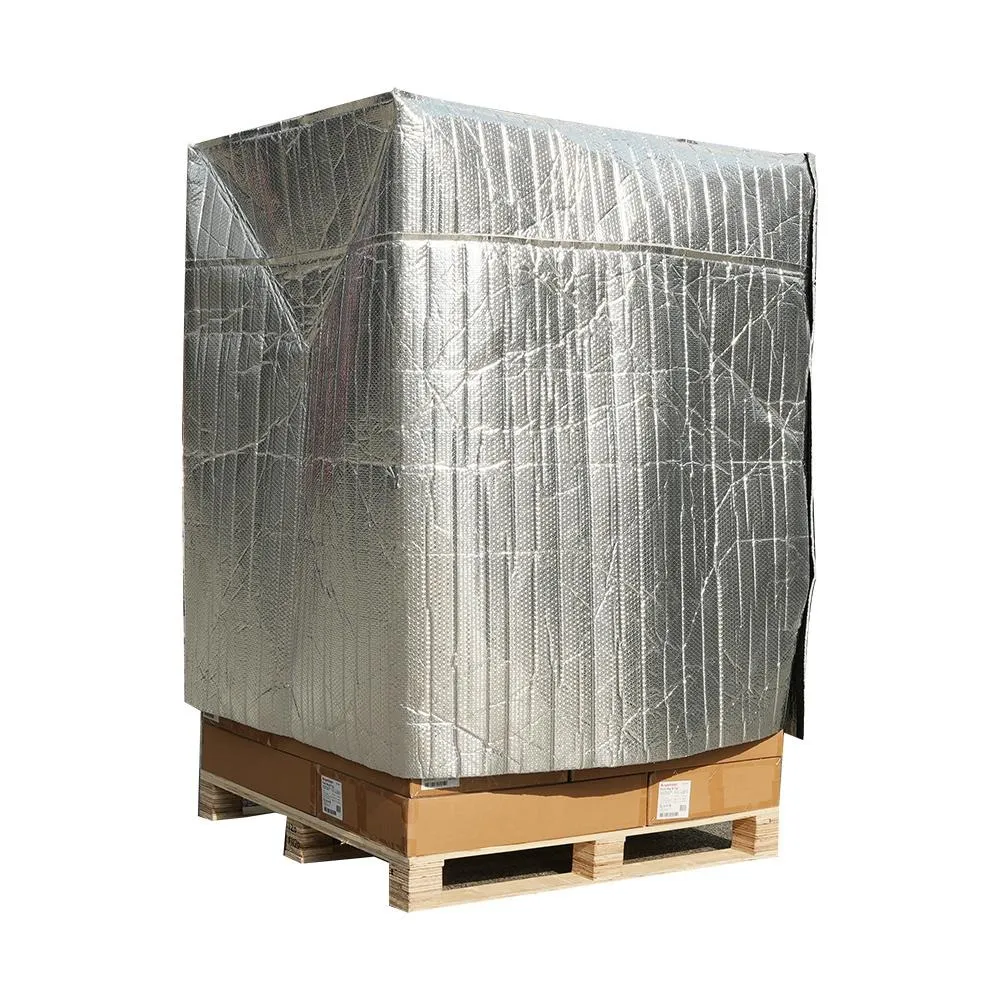

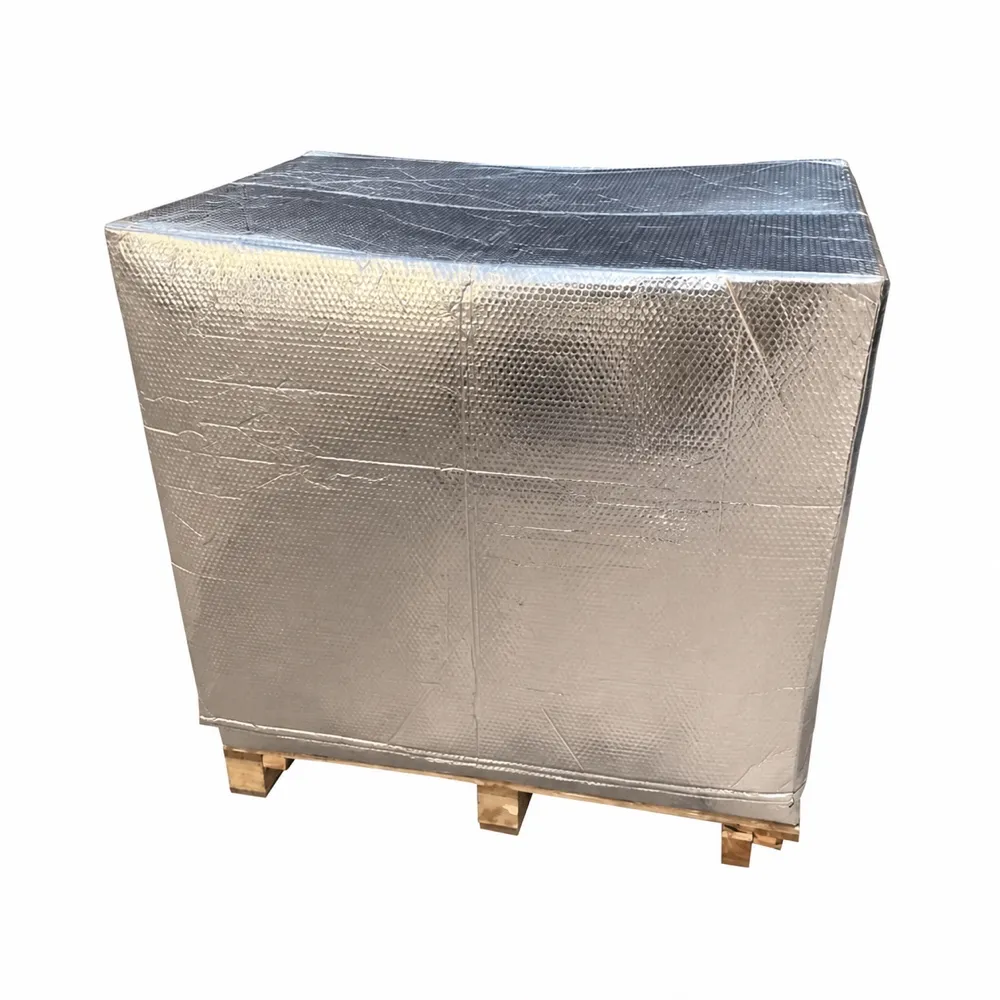

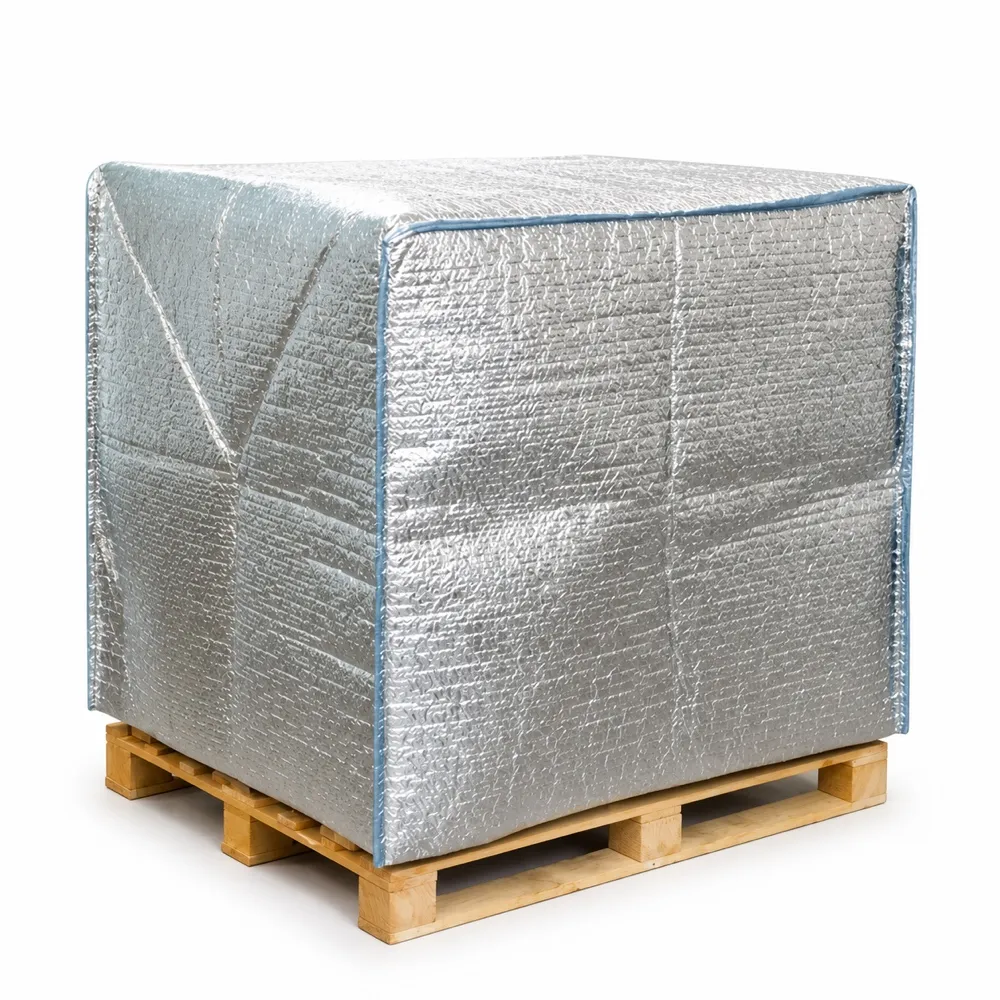

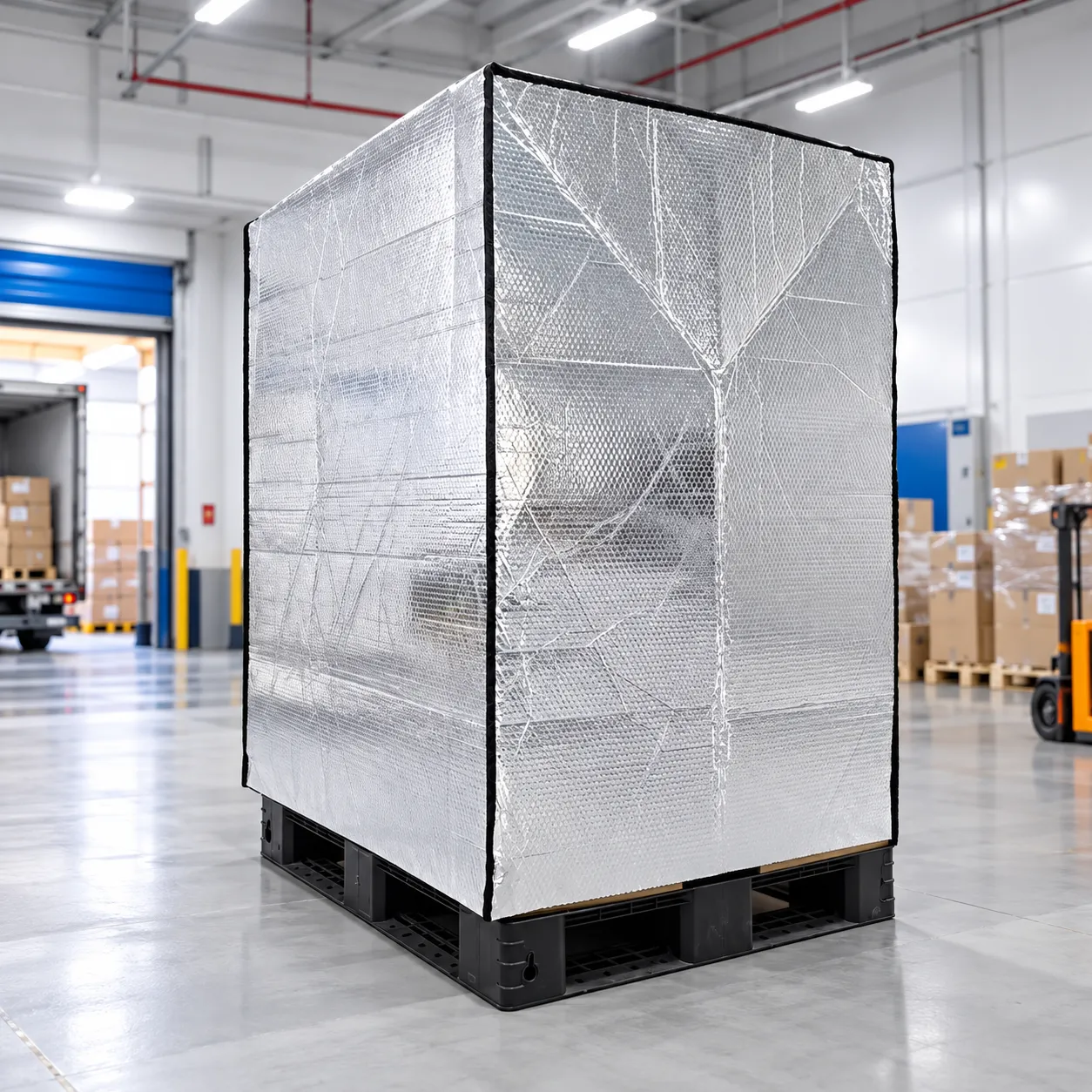

New Solution supplies thermal pallet covers for palletized goods and temperature-sensitive cargo. Listed material options are aluminum foil/PE bubble/aluminum foil and VMPET/PE bubble/VMPET, with single or double bubble structures.
Covers can be processed by heat sealing or sewing, with matching edge treatments and custom dimensions. Provide the actual loaded pallet dimensions, including overhang, rather than specifying only the pallet base size.
Product Specifications
| Item | Specification |
|---|---|
| Product Type | Thermal Cover / Reflective Bubble Insulation Cover |
| Main Material Option 1 | Aluminum Foil + PE Bubble + Aluminum Foil |
| Main Material Option 2 | VMPET Metalized Film + PE Bubble + VMPET Metalized Film |
| Bubble Structure | Single Bubble / Double Bubble |
| Bubble Diameter | 10mm / Customized |
| Bubble Height | 3mm-4mm |
| Bubble Weight | 80GSM-130GSM Customized |
| Total Thickness | 3mm-10mm Customized |
| Surface | Aluminum Foil / Reflective Metalized Film |
| Reflection Rate | Request test data for the selected structure |
| Processing | Heat Sealing / Sewing |
| Edge Treatment | Heat Sealed Edge / Sewn Edge |
| Color | Silver / Customized |
| Moisture Resistance | Confirm for the selected structure and closure |
| Size | Customized |
Reference Thermal Cover Sizes
| Size | Inch | Application |
|---|---|---|
| Small | 24″ × 24″ × 24″ | Small containers |
| Reference | 40″ × 48″ × 48″ | Palletized cargo; confirm loaded dimensions |
| Reference cover | 47″ × 39″ × 47″ | Palletized cargo; confirm loaded dimensions |
| Large | 48″ × 48″ × 60″ | Industrial pallet |
| Customized | Custom | Special requirements |
Dimensions shown are reference sizes. Confirm loaded pallet dimensions, cover allowance and manufacturing tolerances in the order specification.
Match the cover to the route and load
Thermal protection depends on the selected material, cover fit, closure, load, exposure and transport conditions. Any reflectance value, temperature range or protection duration should be supported by a test for the agreed specification. The cover does not replace an actively controlled transport system where one is required. Reuse suitability must be assessed for the chosen structure and handling conditions.
Frequently Asked Questions
Are aluminum foil and metalized film the same option?
They are separate listed surface options. Specify which structure is required and confirm the finished construction and performance data before ordering.
Can covers be made for different pallet sizes?
Custom dimensions are listed. Measure the loaded length, width and height, including overhang and any required overlap, then confirm the closure and edge treatment.
Are the listed dimensions a guarantee of fit or thermal performance?
No. They are reference cover sizes. Final fit, protection duration and any reuse plan must be checked for the actual load and transport conditions.
Request a Product Quote
Please include loaded pallet dimensions and overhang, material preference, closure, handling and route conditions, performance requirements, quantity and destination. MOQ, lead time and final specifications will be confirmed in your quotation.
Related option: Insulated box liners. Explore custom packaging options.
