Product Overview
New Solution supplies moisture barrier bags made with aluminum foil laminate structures for electronic component packaging. Listed options include PET/AL/PE, NY/AL/CPE and custom structures, with a standard reference thickness of 0.10 mm.
Flat, flap, vacuum, gusset and 3D formats are listed, along with custom dimensions and printed logos or warning labels. Select the bag around the packed assembly and your sealing process; include any desiccant or humidity-indicator requirements in the packaging brief.
Standard Specifications
| Item | Specification |
|---|---|
| Product | Aluminum Foil Moisture Barrier Bag |
| Material | PET/AL/PE, NY/AL/CPE, Customized Structures |
| Structure | Multi-layer Aluminum Laminated Film |
| Standard Thickness | 0.10mm |
| Customized Thickness | Available |
| Colors | Metallic Silver / Custom Printing |

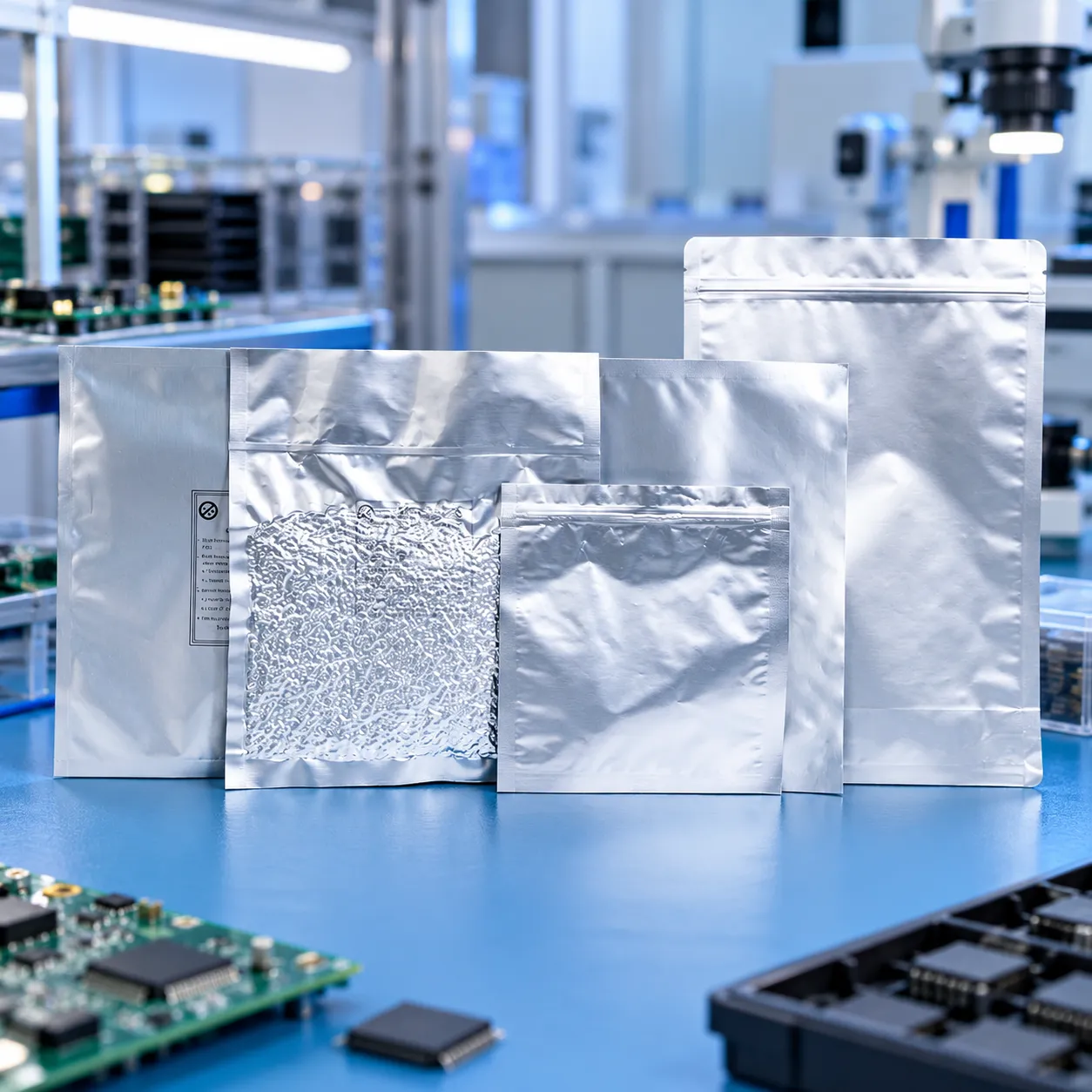

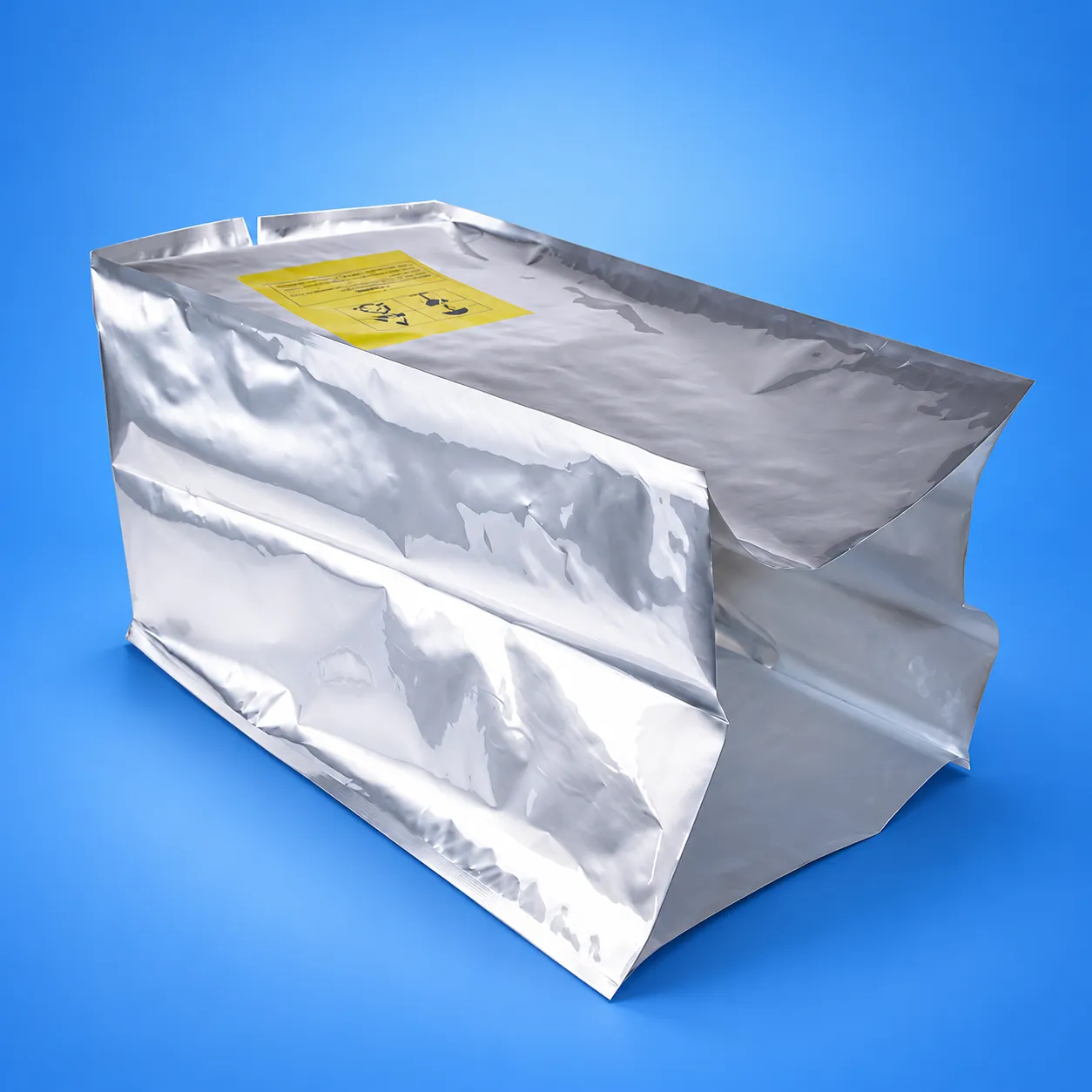

| Bag Types | Flat Bag / Flap Bag / Vacuum Bag / Gusset Bag / 3D Bag |
| Moisture Barrier | Specify the test method, conditions and acceptance limit |

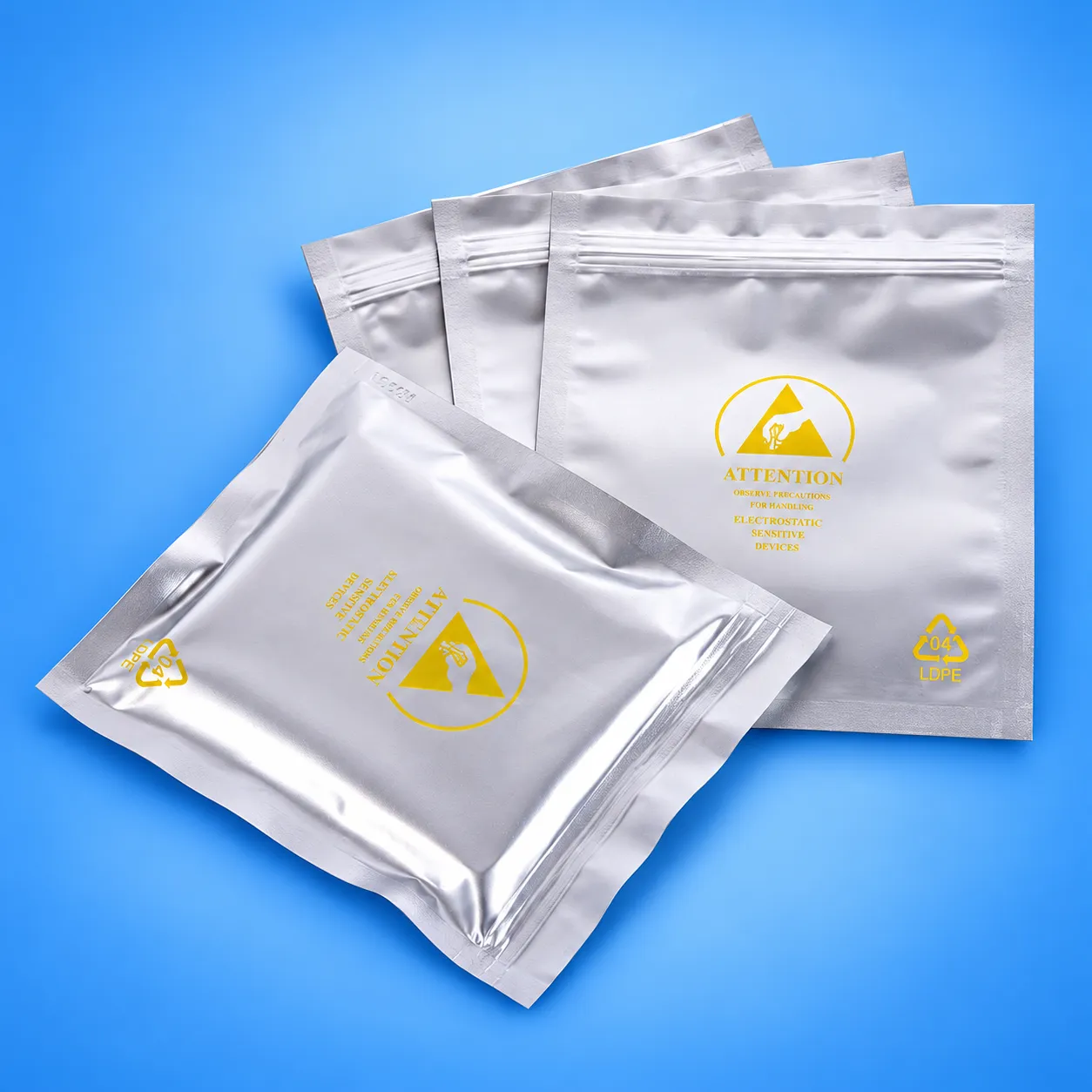

| Printing | Custom Logo & Warning Label |
| Size | Customized |
| Packaging | Carton Packing / Customized |
Reference Sizes
| No. | Approx. size (inch) | Nominal size (mm) | Typical Applications |
|---|---|---|---|
| 1 | 3″ × 5″ | 75 × 125 mm | IC chips, semiconductor components, small electronic parts |
| 2 | 4″ × 6″ | 100 × 150 mm | Electronic components, sensors, precision parts |
| 3 | 6″ × 8″ | 150 × 200 mm | PCB assemblies, SMT components |
| 4 | 8″ × 10″ | 200 × 250 mm | General electronic packaging |
| 5 | 10″ × 12″ | 250 × 300 mm | PCB boards, electronic modules |
| 6 | 12″ × 16″ | 300 × 400 mm | Automotive electronics, industrial components |
| 7 | 14″ × 18″ | 350 × 450 mm | Large PCB assemblies and precision equipment |
| 8 | 16″ × 20″ | 400 × 500 mm | Large electronic systems and industrial products |
Dimensions shown are reference sizes. Confirm usable internal dimensions and manufacturing tolerances in the order specification.
Agree barrier and ESD requirements separately
Moisture transmission, electrical protection and seal quality depend on the selected laminate and finished bag. Request moisture-vapor transmission data with the test method and conditions, and specify any separate static-shielding or surface-resistance requirements. This page does not assign a universal MVTR value, storage life or ESD rating to every available structure.
Frequently Asked Questions
How is a moisture barrier bag different from a standard shielding bag?
This product family uses an aluminum foil laminate for applications with moisture-barrier requirements. Static shielding is a separate performance requirement and should be checked against the selected bag specification.
What information is needed for a dry-packing application?
Provide the component dimensions, required barrier and electrical criteria, sealing process, storage or transport conditions, and any desiccant or humidity-indicator requirements.
Can the bags be customized?
Custom size, thickness, laminate structure and printing are listed options. MOQ, lead time and test documentation are confirmed in the quotation for the selected specification.
Request a Product Quote
Please include component and packed dimensions, laminate, thickness, seal format, barrier and ESD criteria, printing, quantity and destination. MOQ, lead time and final specifications will be confirmed in your quotation.
